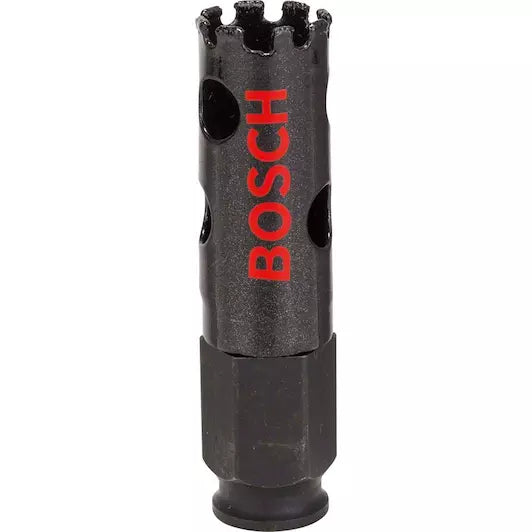

Bosch 2608580301

Professional Summary

• Manufacturer: Bosch (Germany)

• Article / Part Number: 2608580301

• Tool Type: Diamond Dry Core Cutter (Dry Diamond Core Bit)

• Performance Class: High-grade diamond segment technology optimized for dry masonry drilling.

Dimensions & Specifications

• Diameter: 38 mm (ideal size for drilling precise clearance holes for water supply pipes, heating lines, and routing standard electrical or network conduit bundles).

• Working Length: 60 mm (effective drilling depth).

• Segment Count: 3 premium diamond segments attached via robust, heat-resistant laser welding.

• Mount / Thread Connection: M16 internal thread (requires a standard M16 adapter shank, such as SDS-plus or hex, and a centering pilot drill bit).

Key Features & Operating Guidelines

• Dry Drilling Optimized: No water cooling required. The advanced diamond matrix and laser joints are structurally built to handle intense friction and high thermal loads during dry operation.

• Rotary Action Only (No Hammer): Must be operated strictly in non-impact/rotary mode. Running this core bit on a hammer setting will instantly shatter or tear off the premium diamond segments.

• Clean Performance: The optimized body slots permit efficient dust removal and keep continuous cutting temperatures under control.

Application Material Range: Perfect for cutting precise round holes in sand-lime brick, solid clay brick, aerated concrete (breeze blocks), masonry walls, and soft limestone.
