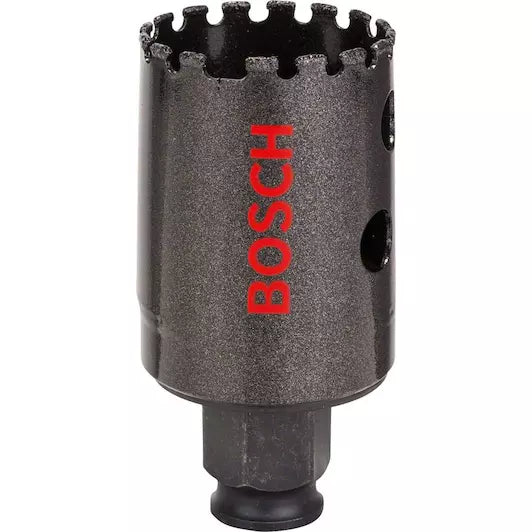

Bosch 2608580308

Professional Summary

• Manufacturer: Bosch (Germany)

• Article / Part Number: 2608580308

• Tool Type: Diamond Dry Core Cutter (Dry Diamond Core Bit)

• Performance Class: Heavy-duty diamond segment technology optimized for dry masonry and ventilation infrastructure setups.

Dimensions & Specifications

• Diameter: 112 mm (specifically designed for cutting large sleeves for ventilation ducts, sewage drainage pipes, or complex industrial cable routing).

• Working Length: 60 mm (effective drilling depth).

• Segment Count: 4 premium diamond segments attached via robust, heat-resistant laser-welding.

• Mount / Thread Connection: M16 internal thread (requires a heavy-duty M16 adapter shank, such as SDS-plus or hex, and a centering pilot drill bit).

Key Features & Operating Guidelines

• Dry Drilling Optimized: No water cooling required. Engineered with advanced thermal management to maintain segment bond structural integrity under severe friction.

• Rotary Action Only (No Hammer): Must be used strictly in non-impact/rotary mode. Operating with a hammer or percussion system active will instantly fracture or shear the diamond matrix.

• High Core Extraction: Despite the large surface area, the body cutouts permit efficient dust removal and keep continuous cutting temperatures under control.

Application Material Range: Perfect for cutting clean, wide round holes in sand-lime brick, solid clay brick, aerated concrete (breeze blocks), masonry block walls, and soft limestone.
