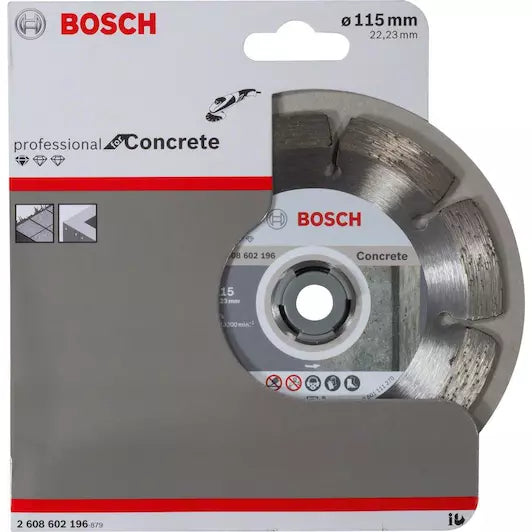

Bosch 2608602196 Standard for Concrete

Professional Summary

• Manufacturer: Bosch (Germany)

• Article / Part Number: 2608602196

• Product Line: Standard for Concrete

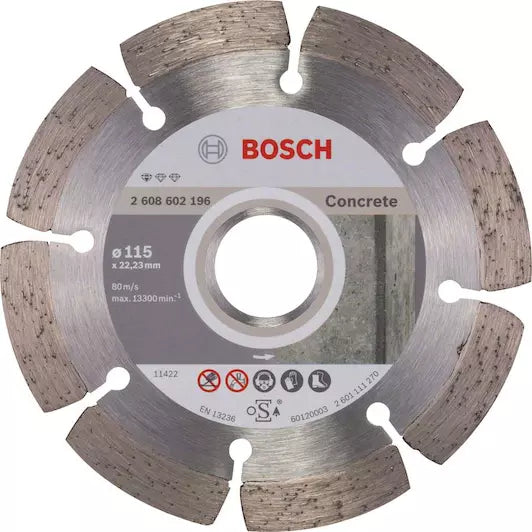

• Type: Segmented Diamond Cutting Disc

Dimensions & Fitment Specs

• Outer Diameter: 115 mm (standard compact size optimized for 115 mm small handheld angle grinders).

• Bore / Inside Diameter: 22.23 mm (universal standard bore fitting standard grinder spindles globally).

• Cutting Width (Thickness): 1.6 mm (ultra-thin core blade engineered to deliver high cutting speeds, minimal resistance, and lower tool load).

• Segment Height: 10 mm (high diamond matrix concentration ensuring an economical and extended service life).

Key Features & Engineering

• Concrete-Optimized Matrix: Features a specialized, tough metal bond combined with high-grade industrial diamonds tailored specifically to handle abrasive concrete surfaces without glazing.

• Segmented Design with Core Holes: The individual cutting segments with dedicated deep gaps facilitate immediate dust extraction and cool the blade under friction. Additionally, ventilation holes integrated into the steel core enhance heat dissipation during dry cuts.

• Effortless Progress: The thin 1.6 mm width reduces motor stress on lower-wattage grinders, allowing faster linear cutting speed through concrete structures.

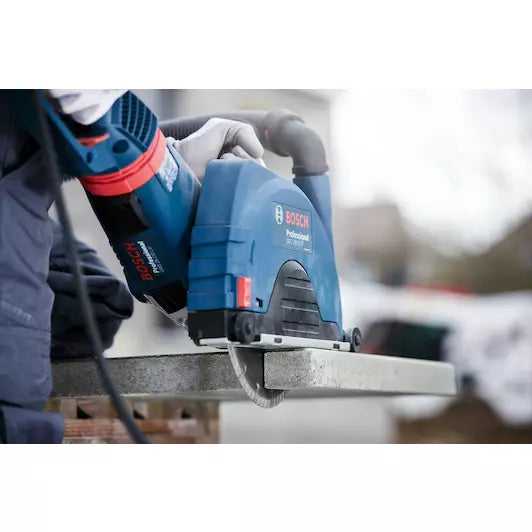

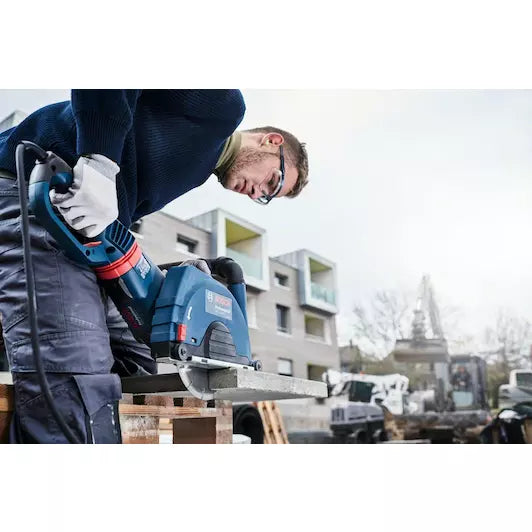

Application Material Range: Engineered primarily for concrete. Excellently suited for cutting standard concrete, cured concrete, reinforced concrete (light rebar), cellular concrete, mortar, and concrete building blocks.
