BOSCH diamond drill bit for dry drilling Dry Speed Best for Ceramic 30 x 35 mm

Professional Summary

• Manufacturer: Bosch Power Tools

• Article / Part Number: 2608587119

• Product Line: Best for Ceramic (Professional Grade)

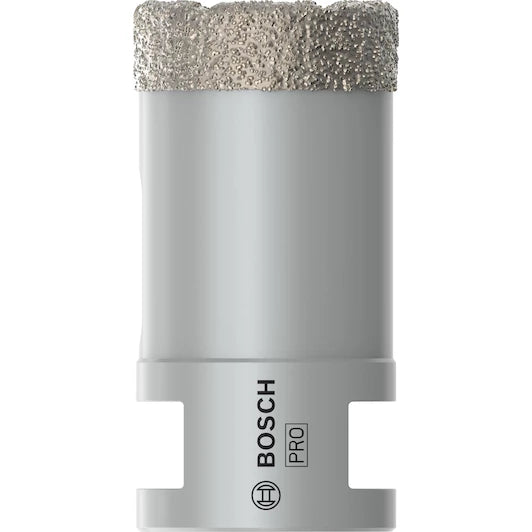

• Type: Diamond Dry Core Bit (for angle grinders)

Dimensions & Specs

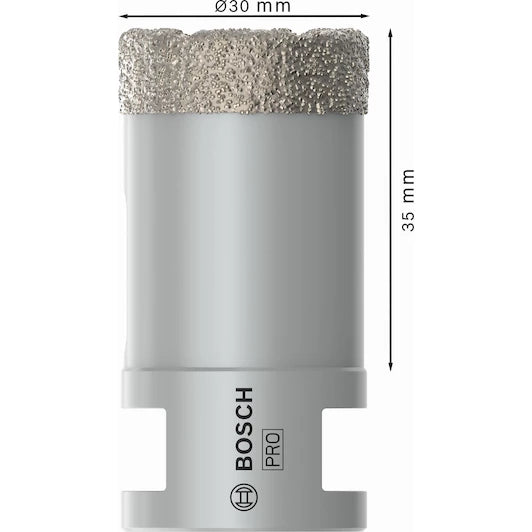

• Diameter ($d$): 30 mm

• Working Length ($L$): 35 mm

• Tool Connection: M14 thread (standard for direct angle grinder mounting).

• Technology: Vacuum-brazed diamond technology (high-performance dry drilling).

Key Features & Engineering

• Robust 30 mm Diameter: Engineered for larger apertures, ideal for installing mid-sized pipe fittings, electrical junction boxes, or architectural fixtures.

• Vacuum-Brazed Durability: The diamond grit is fused to the steel core through vacuum brazing, ensuring that the grains remain sharp and intact even during heavy-duty dry drilling of porcelain stoneware and granite.

• Heat Management: Designed to operate efficiently without water cooling. The core bit design allows for quick dissipation of heat, preventing the bit from glazing over.

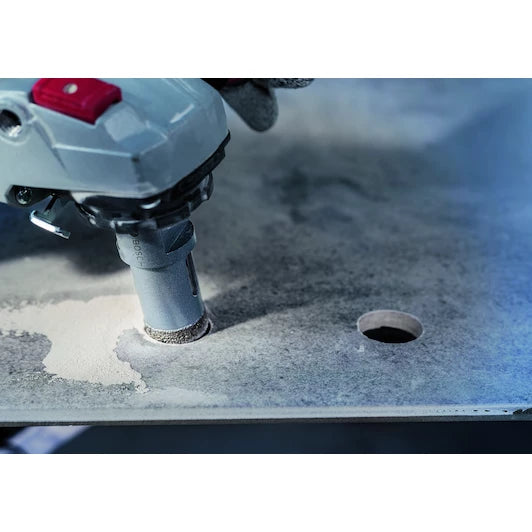

• Professional Speed: Optimized for angle grinders running at high RPM, delivering precise, chip-free holes in brittle, high-density tiling materials.

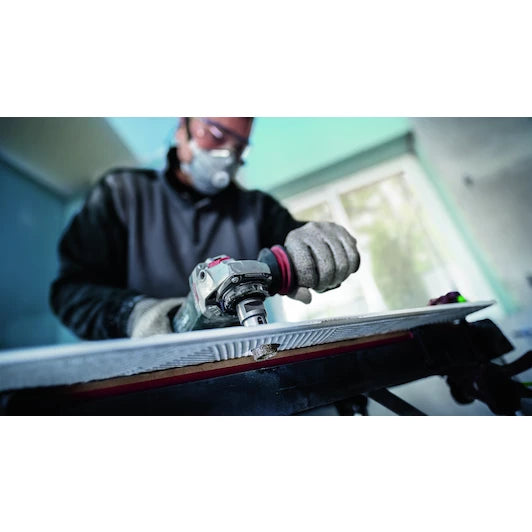

Application Range:

Professional installation of plumbing, ventilation, and electrical systems in tiled areas. Suitable for porcelain stoneware, hard ceramic tiles, granite, natural stone, and clinker.
