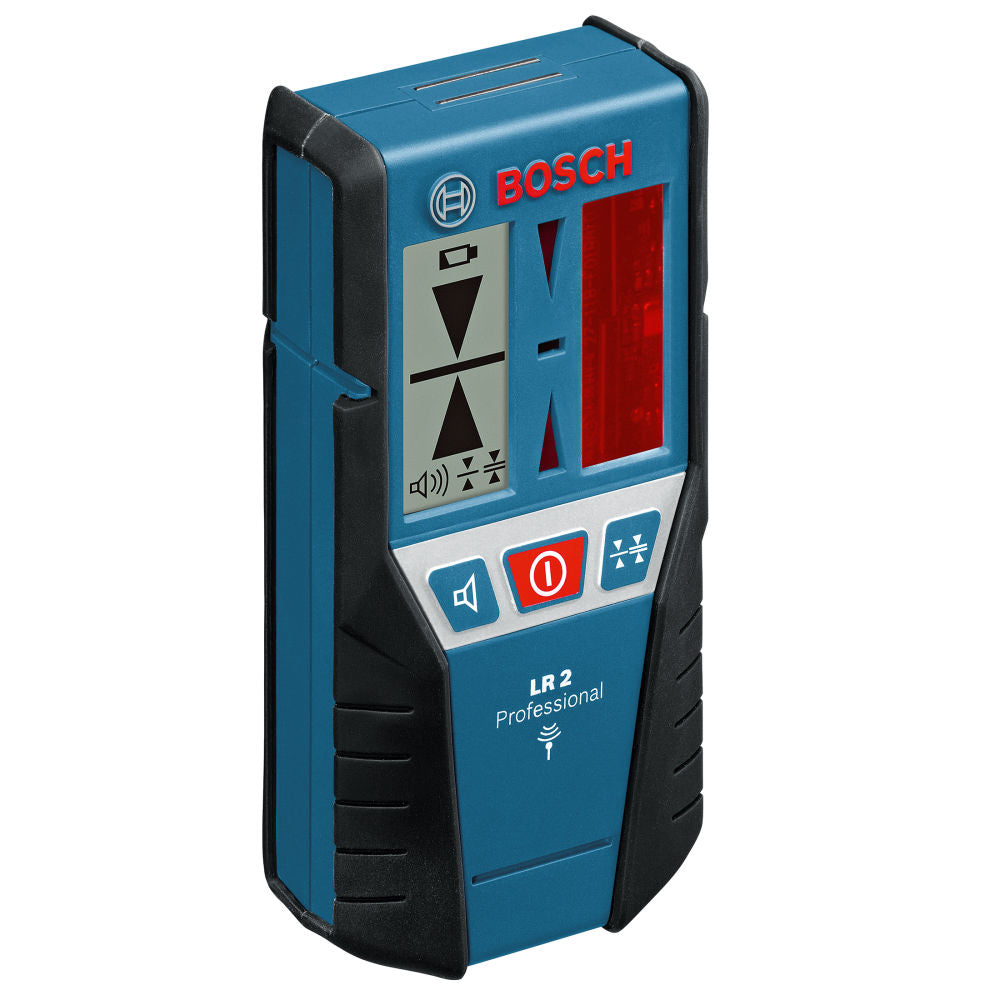

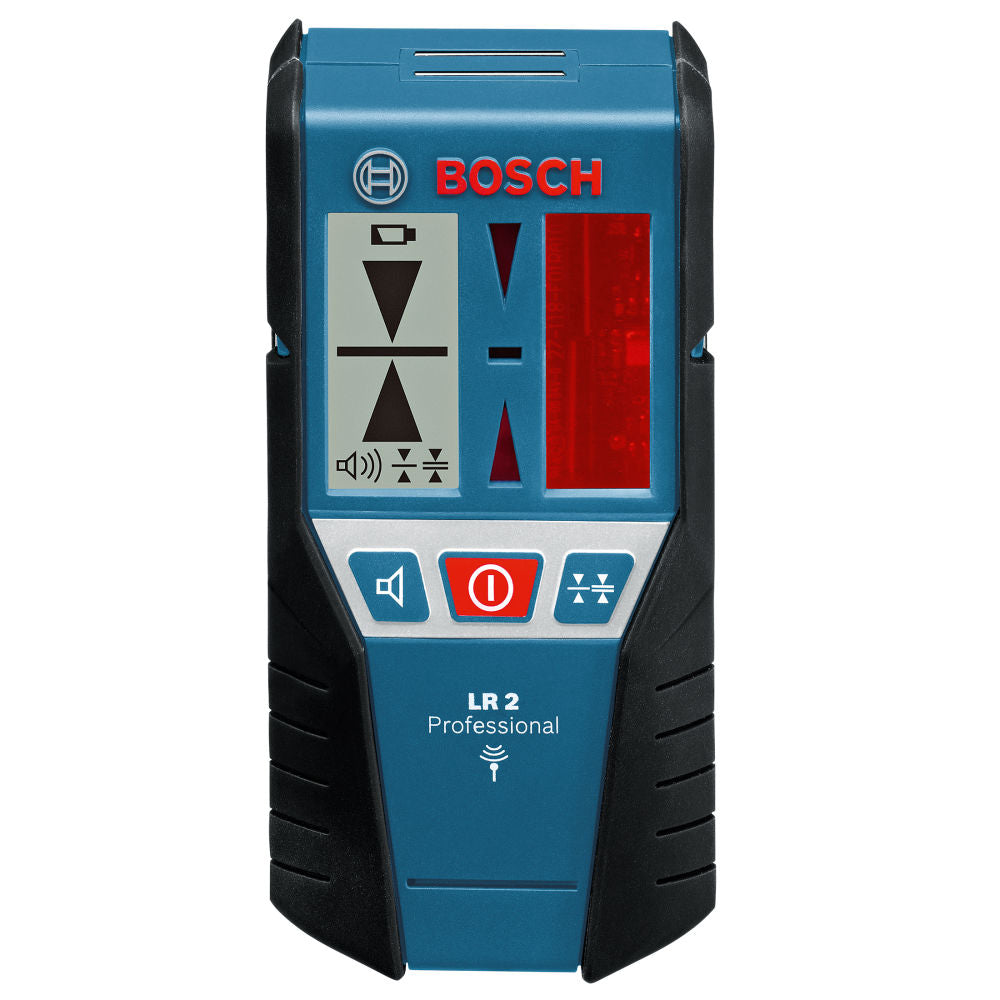

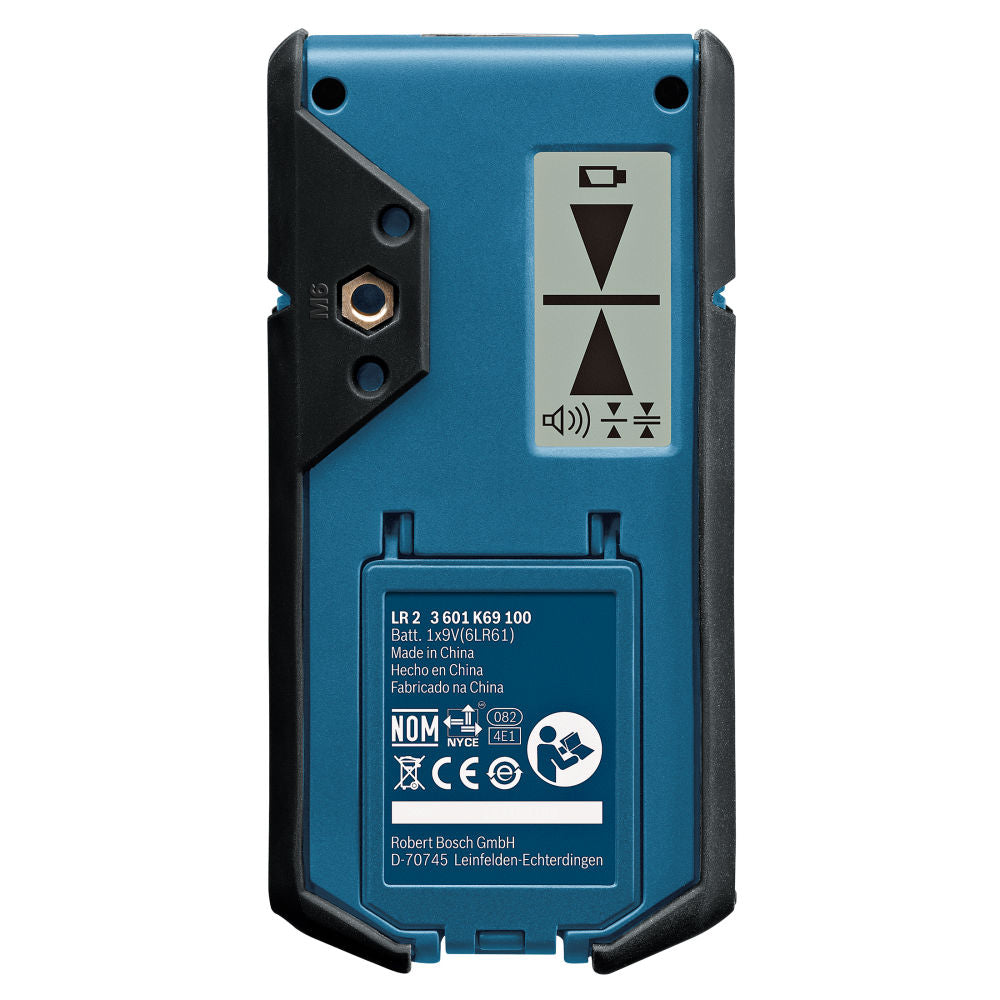

Bosch LR 2 Professional Laser Receiver

Dust and splash water protection (IP 54). The 1 608 M00 05A holder is used for mounting. Power supply: 1 x 9 V 6LR61 block battery. Dust and splash protection: IP 54. Accuracy: fine - 1 mm, coarse - 3 mm. Reception angle: 90°. Reception height: 4 cm. Working range: 5–50 m. Operating time: 30 hours. Weight: 0.2 kg.

Advantages:

• Easy mounting on a grade rod using the holder.

• User-friendly display showing all necessary information.

• Practical receiver with a range of up to 50 m for indoor or outdoor use.

• Laser beam alignment with visual and audible indicators (display and LEDs) for operation in various lighting conditions.

Technical specifications:

• Application: For laser levels

• Spectral sensitivity: 650–670 nm

• Accuracy (sensitivity): ± 1.0 / 3.0 mm

• Working range: 50 m

• LCD display: 1

• Beam reception angle: 120°

• Audio signal: Yes

• Power supply: 9V (PP3 / block battery)

• Operating time: 50 h

• Operating temperature: -10°C to +50°C

• Enclosure protection rating: IP54

• Weight: 0.2 kg

• Dimensions (H x W x D): 150x74x41 mm

• Rod mount included: No
