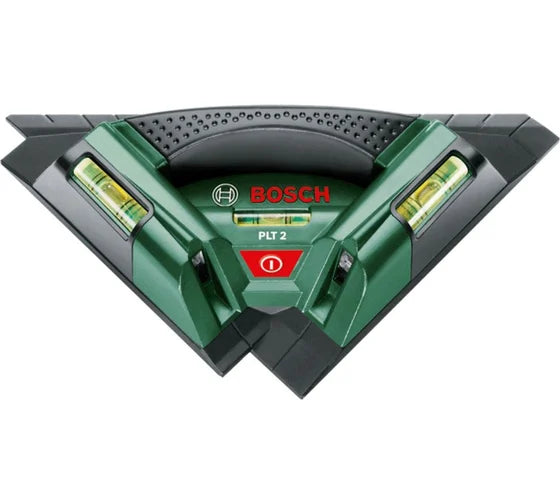

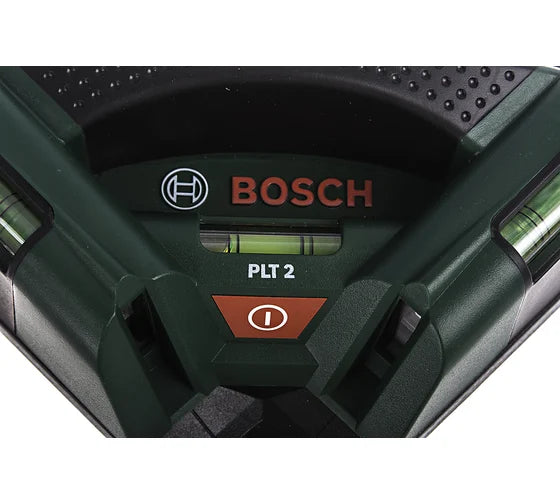

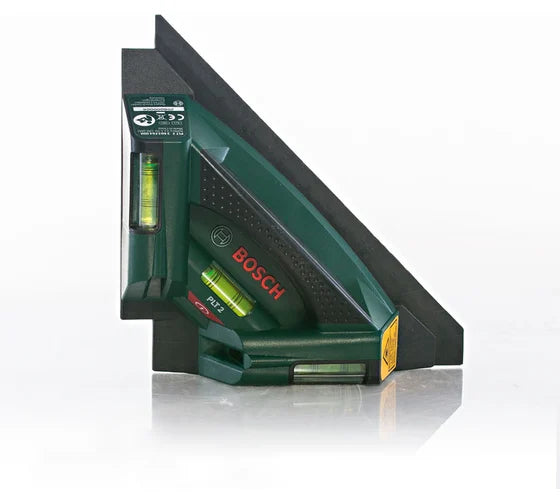

Bosch PLT 2 Tile Laser, 0.603.664.020

The Bosch PLT 2 0.603.664.020 tile laser is a DIY-class measuring tool designed specifically for horizontal and diagonal alignment when laying tiles or laminate indoors. This model features three bubble levels for simple and precise manual leveling.

Technical specifications of the Bosch PLT 2 603664020:

• Number of beams: 2 pcs.

• Type: Laser layout tool (tile laser)

• Pattern verification / Metrological certification: No

• Calibration certificate included: No

• Leveling type: Manual

• 360-degree projection: No

• Working range without receiver: 7 m

• Working range with receiver: Does not work with a receiver

• Receiver compatibility: No

• Beam color: Red

• Beam direction: 2 horizontal lines

• Laser wavelength: 635 nm

• Laser class: 2

• Battery type: AA (R6; LR6; FR6)

• Number and voltage of batteries: 3 x 1.5 V

• Self-leveling lock/disable switch: No (manual alignment only)

• Accuracy: ± 0.5 mm/m

• Rechargeable batteries included: No

• Magnetic mount: No

• Tripod thread: 5/8 inch

• Tripod included: No

• Grade rod included: No

• Audio signal: No

• Receiver included: No

• Plumb bob/dot: No

• Remote control included: No

• Storage temperature: -20 to +70 °C

• Operating temperature: +5 to +40 °C

• Packaging type: Blister pack

• Net weight: 0.36 kg

Advantages of the Bosch PLT 2 603664020:

• Comes with a wall mount included for more convenient operation;

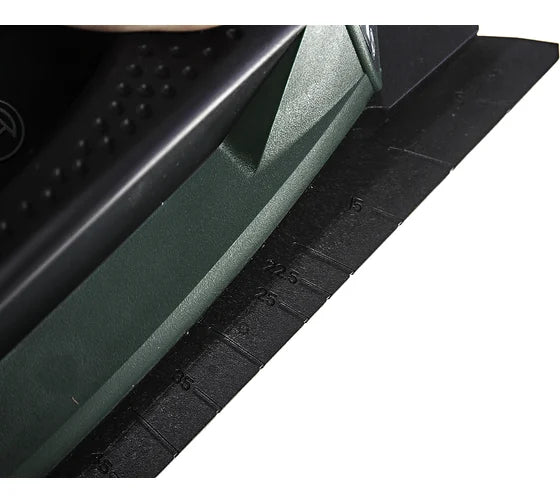

• L-shaped and T-shaped alignment edges for easy positioning of the laser.
