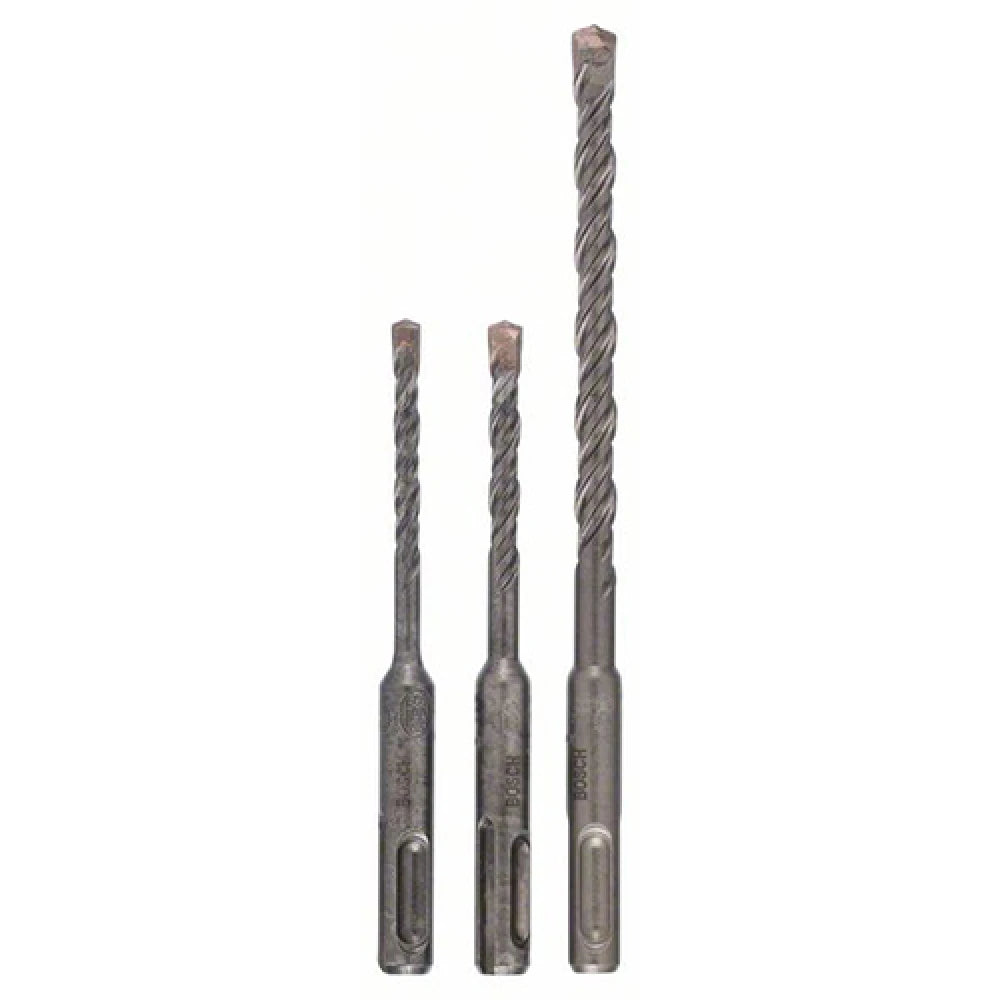

Bosch SDS-Plus-5 Concrete Drill Bit Set, 3-Piece (1617000118)

Design Features and Benefits:

• Advanced Series: Bosch SDS-plus-5 drill bits are an advanced series featuring two cutting edges made of hardened carbide using AWB brazing technology.

• Optimized Brazing: The brazing technology is optimized for the drill bit's diameter, significantly increasing strength and reducing vibration during drilling.

• Dust Removal Teeth: Teeth on the carbide tip guide dust directly into the flute.

• Turbo Flute Design: The patented 4-flute Turbo design ensures highly efficient removal of drilling dust.

• Wear Indicator: The wear indicator allows you to determine the tolerance level to ensure proper wall plug/dowel installation.

• Centering Tip: Drill bits with a diameter of < 10mm feature an active Activeteq centering tip.

• Long Service Life: This series of drill bits offers an excellent lifespan.

• Compatibility: Suitable for all rotary hammers with an SDS-Plus chuck.

Technical Specifications:

• Brand Registration Country: Germany

• Country of Manufacture: Germany

• Manufacturer: Bosch

• Class: Professional

• Type: Drill bit

• Compatibility: Rotary hammer

• Total Length: 115 mm, 165 mm

• Working Length: 50 mm, 100 mm

• Diameter: 5 mm, 6 mm, 8 mm

• Shank Type: SDS-Plus

• Carbide Tip Shape: 2 cutting edges

• Sharpening Angle: 90°

Applicable Materials:

• Brick

• Concrete

• Reinforced concrete

• Stone

Package Includes:

• Bosch SDS-Plus-5 concrete drill bit set (3 pcs.)

• Delivered in a blister pack

Specifications: Bosch SDS-Plus-5 Concrete Drill Bit Set (3 pcs.) (1617000118)

• Length: 115.0 mm, 165.0 mm

• Type: Set

• Diameter: 5.0 mm, 6.0 mm, 8.0 mm

• Working Length: 50 mm, 100 mm

• Chuck Type: SDS-Plus

• Applicable Material: Concrete, Stone, Brick
