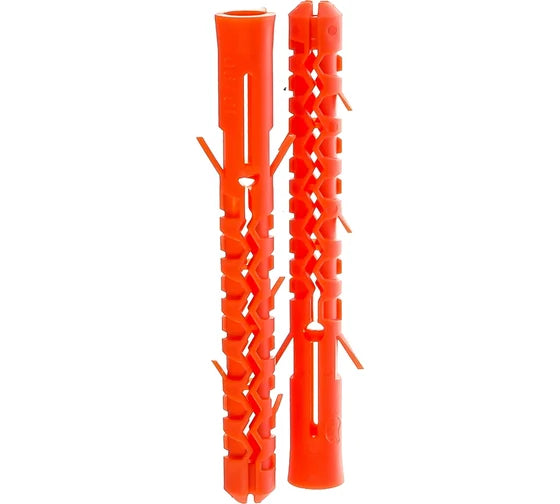

Mungo 1101009 10*90

Product Summary

• Manufacturer: Mungo Befestigungstechnik AG

• Article / Part Number: 1101009

• Series: ML (Long-type nylon anchor)

• Base Material: Hollow brick, perforated brick, lightweight concrete, and solid masonry.

Technical Dimensions

• Anchor Diameter : 10 mm

• Total Length : 90 mm

• Required Drill Diameter: 10 mm

• Min. Anchorage Depth: 80 mm

Key Features & Engineering

• Multi-Web Bridge: Designed with an extended 90 mm length to span multiple internal webs of perforated bricks, ensuring maximum structural anchoring behind the face material.

• Knotting Action: In hollow materials, the anchor forms a solid knot behind the masonry web, providing high pull-out resistance.

• Rotation Protection: Includes specialized anti-rotation locking fins to prevent the plug from spinning while the screw is being driven in.

• Premium Nylon: High-quality, aging-resistant polyamide ensures long-term elasticity and prevents brittleness, maintaining a secure grip over many years.

Application Range:

Heavy-duty interior and exterior installations. Ideal for mounting wooden substructures, facades, heavy wall brackets, and window frames in hollow or porous base materials.
