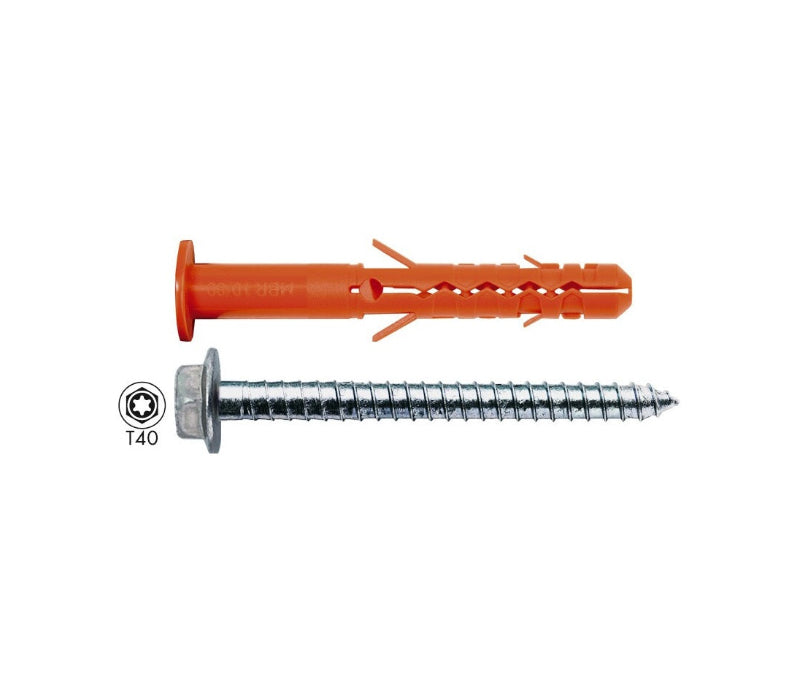

Mungo 1120706 10*60
Mungo 1120706 10*60
Product Summary
-
Manufacturer: Mungo Befestigungstechnik AG
-
Article / Part Number: 1120706
-
Series: MBRK-STB (Facade anchor with collar)
-
Base Material: Concrete, solid brick, sand-lime brick, hollow masonry.
-
Included: Pre-assembled locking screw with press-washer head.
Technical Dimensions
-
Anchor Diameter : 10 mm
-
Total Length : 60 mm
-
Required Drill Diameter: 10 mm
-
Drive: Hexagonal + Torx T40
Key Features & Engineering
-
High-Strength Locking Screw: Equipped with a specially hardened, zinc-plated steel screw featuring a press-washer (flange) head, which distributes pressure evenly for a secure, flush installation.
-
Collar Design: The integrated collar (rim) prevents the anchor from sliding too deep into the drill hole and prevents contact corrosion between metal parts and the substrate.
-
Dual-Drive System: The screw head is compatible with both a hex socket and a Torx T40 driver, ensuring versatility and high torque transmission during installation.
-
Security: High-performance expansion zones ensure stability in both solid and hollow substrates.
Application Range: Professional facade construction and heavy-duty fixings. Ideally suited for mounting substructures for wooden or metal facades, wall brackets, and heavy equipment.
