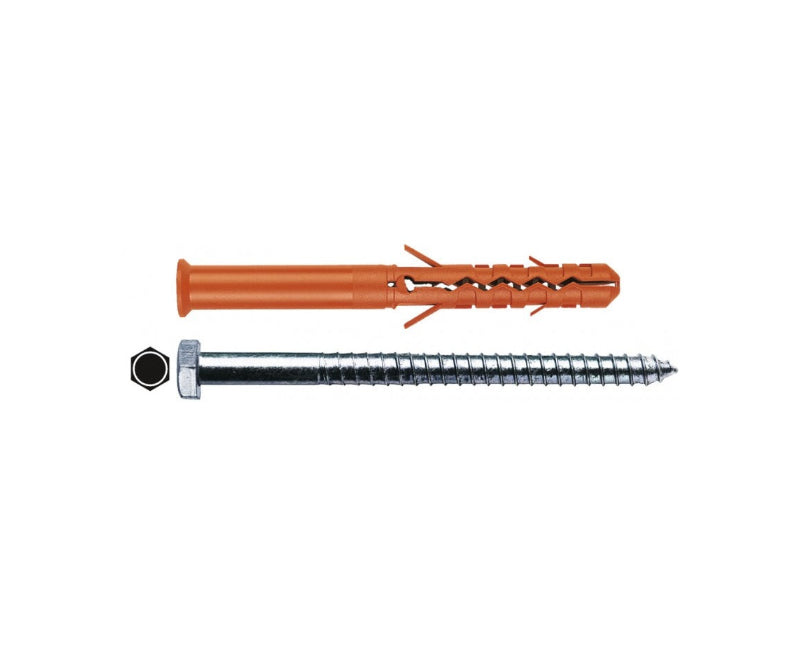

Mungo 1121506 10*60

Product Summary

• Manufacturer: Mungo Befestigungstechnik AG

• Article / Part Number: 1121506

• Series: MBR-SS (Facade anchor with hexagon head screw)

• Base Material: Concrete, solid brick, sand-lime solid brick.

• Included: Pre-assembled steel screw with an integrated hex head.

Technical Dimensions

• Anchor Diameter : 10 mm

• Total Length : 60 mm

• Required Drill Diameter: 10 mm

• Min. Anchorage Depth: 50 mm

• Drive: Hexagonal (HEX) head

Key Features & Engineering

• Heavy-Duty Hex Head: The integrated hexagon head allows for high torque application using a wrench or socket, providing superior clamping force compared to standard screw drives.

• High-Performance Expansion: Designed to provide excellent grip in solid masonry, utilizing a specialized expansion mechanism that prevents rotation during installation.

• Pre-assembled Efficiency: The anchor and the hardened steel screw are supplied as a pre-assembled unit, saving time on the job site.

• Corrosion Resistance: The screw is typically zinc-plated, offering reliable protection against atmospheric corrosion in exterior applications.

Application Range:

Professional construction. Ideally suited for heavy-duty fixings, such as mounting steel profiles, metal facades, wooden substructures, and heavy brackets to concrete or solid brick walls.
