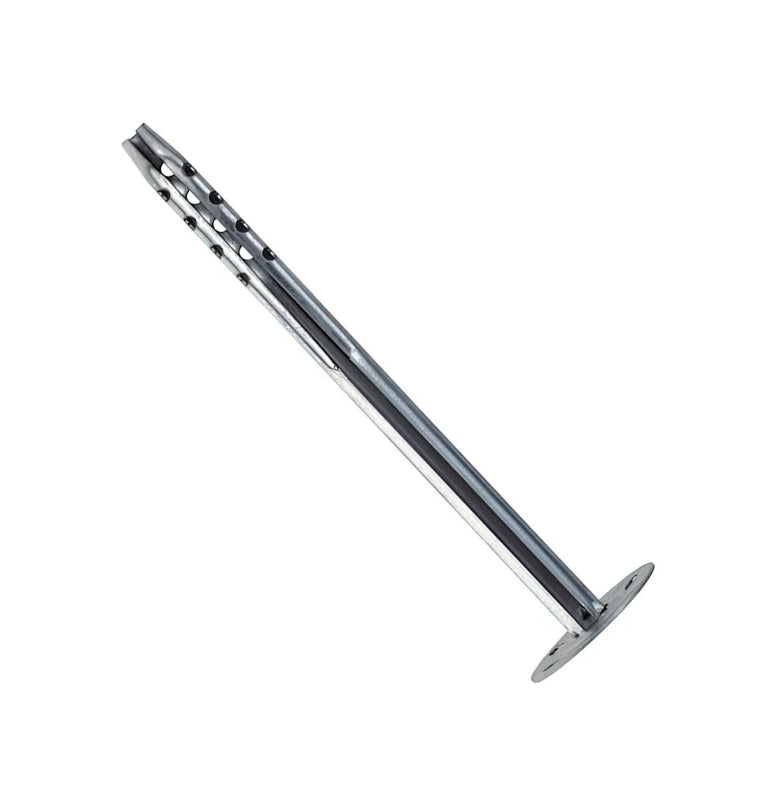

Mungo 1180503 8*140

Product Summary

• Manufacturer: Mungo Befestigungstechnik AG

• Series: MIDS (Insulation anchor with steel nail)

• Base Material: Concrete, solid brick, hollow brick, aerated concrete.

• Design: High-performance insulation anchor with a metal nail for fire-rated applications.

Technical Dimensions

• Anchor Diameter : 8 mm

• Total Length : 140 mm

• Required Drill Diameter: 8 mm

• Plate Diameter: 30 / 35 mm (Depending on the specific variant/region)

• Min. Anchorage Depth: 40 mm (in solid material)

Key Features & Engineering

• Metal Nail (Fire Safety): Unlike standard plastic-nail anchors, the MIDS features a steel nail. This ensures structural integrity and stability even in the event of a fire, preventing the insulation from falling off.

• Specialized Plate Design: The compact 30/35 mm head is designed for secure retention of high-density insulation materials, ensuring a flush surface finish.

• Cold-Bridge Prevention: The head is specially coated or engineered to minimize thermal conduction, ensuring the insulation layer remains effective.

• High-Speed Installation: The pre-mounted steel nail allows for rapid hammer-in installation, maintaining efficiency without compromising safety.

• Durable Construction: Made from high-grade impact-resistant plastic with a zinc-plated or stainless steel nail to ensure long-term corrosion resistance in outdoor environments.

Application Range: Professional facade insulation (ETICS). Specifically recommended for high-rise buildings and fire-escape routes where metal-pin anchors are mandated by building codes.
