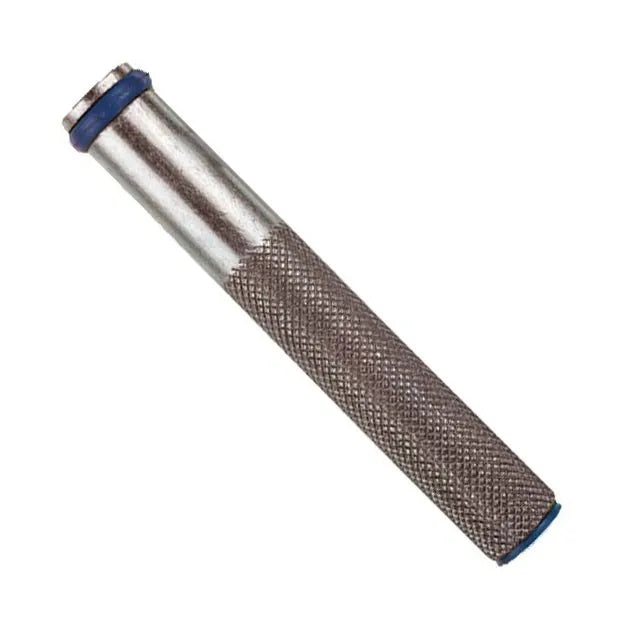

Mungo 1710060 (MIT-IGH Series

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710060 (MIT-IGH Series)

• Type: Internally Threaded Sleeve for Chemical Anchoring (Female Sleeve)

• Quantity per pack: 10 pieces

Technical Specifications

• Internal Metric Thread Size: M6

• Sleeve Outer Diameter ($d$): 10 mm

• Total Sleeve Length ($L$): 48 mm (compact size for shallow embedment or thin base materials)

• Drill Hole Diameter ($d_0$): 12 mm (in concrete) / 12 mm (in hollow masonry, when combined with a suitable mesh sleeve)

• Thread Engagement Depth ($x$): 6 - 18 mm

• Material/Grade: Zinc-plated carbon steel ($\ge$ 5 µm), Steel Grade 5.8.

Key Benefits & Operating Principle

• Seamless Flush-Surface Finish: Once installed with injection resin, the sleeve sits perfectly level with the face of the substrate. It allows standard M6 bolts or machine screws to be fully tightened and neatly removed later, leaving zero floor or wall obstructions.

• Effective Anchoring at Shallow Depths: Despite its short 48 mm profile, the aggressive external annular ribbing guarantees that the curing chemical mortar forms a high-strength mechanical interlock with the base material.

• Substrate Adaptability:

  • In solid concrete, it is embedded directly into the 12 mm resin-filled hole.

  • In hollow masonry, it can be paired inside a matching plastic perforated sleeve to anchor securely within brick cavities.

Application:

Specifically targeted for use with Mungo MIT injection systems for light-to-medium structural or secondary attachments. Ideal for light-gauge utility pipe hangers, electrical cable tray routing, CCTV camera brackets, commercial lighting fixtures, switchboxes, and lightweight sanitary wall mountings.
