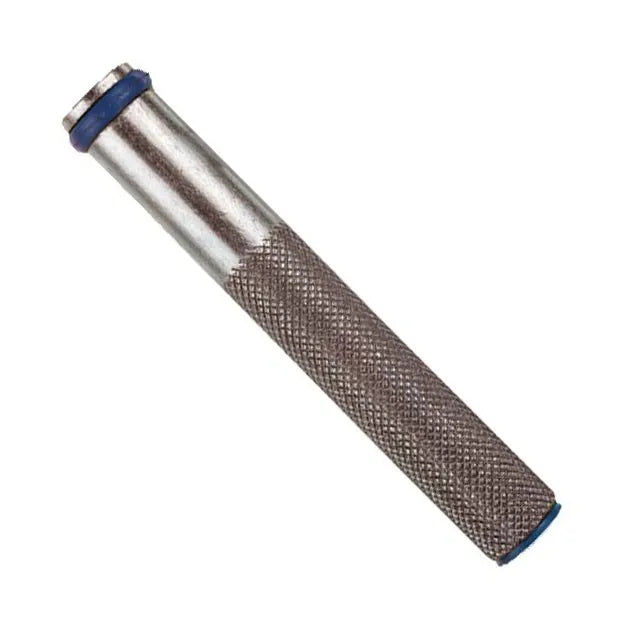

Mungo 1710061 (MIT-IGH Series)

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710061 (MIT-IGH Series)

• Type: Internally Threaded Sleeve for Chemical Anchoring (Female Sleeve)

• Quantity per pack: 10 pieces

Technical Specifications

• Internal Metric Thread Size: M8

• Sleeve Outer Diameter ($d$): 14 mm

• Total Sleeve Length ($L$): 80 mm

• Drill Hole Diameter ($d_0$): 16 mm (in concrete) / 16 mm (in hollow masonry, when combined with an SH 16x85 mesh sleeve)

• Thread Engagement Depth ($x$): 8 - 25 mm

• Material/Grade: Zinc-plated carbon steel ($\ge$ 5 µm), Steel Grade 5.8.

Key Benefits & Operating Principle

• Obstruction-Free Flush Finish: After the injection mortar cures, the sleeve sits completely level with the base material. It allows standard M8 hexagon bolts or threaded studs to be inserted, tightened, and fully removed later without leaving protruding hardware.

• High-Bite External Grooves: Features sharp external annular ring-grooves that mechanically interlock with the curing chemical resin, maximizing resistance against high pull-out forces and preventing sleeve rotation during bolt tightening.

• Substrate Adaptability:

  • In solid concrete, it is embedded directly into the resin-filled cavity.

  • In perforated or hollow brick masonry, it is placed inside a plastic mesh sleeve (such as MIT-SH-K2 16x85) to securely bridge the voids.

Application:

Specified alongside Mungo MIT injection resins for structural and architectural attachments where flush removal is required. Perfect for medium-duty HVAC duct suspension, electrical panel mounting, staircase balustrades, public seating installation, and pipe support brackets.
