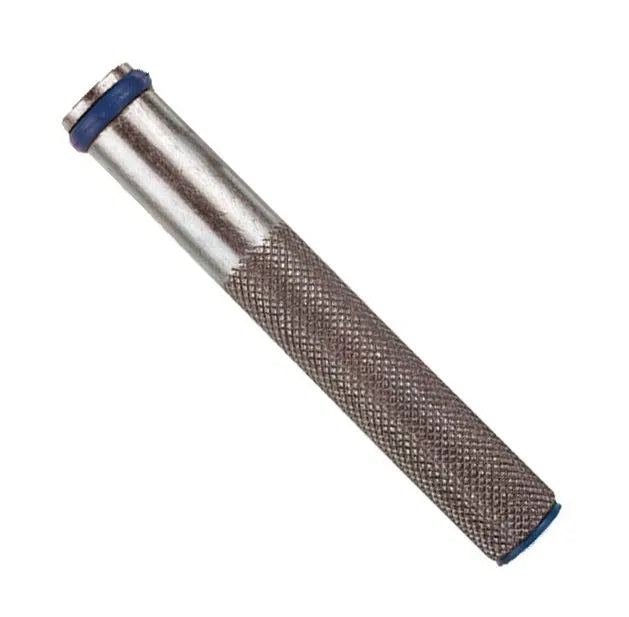

Mungo 1710063 (MIT-IGH Series)

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710063 (MIT-IGH Series)

• Type: Internally Threaded Sleeve for Chemical Anchoring (Female Sleeve)

• Quantity: 1 piece (Sold individually)

Technical Specifications

• Internal Metric Thread Size: M12

• Sleeve Outer Diameter ($d$): 18 mm

• Total Sleeve Length ($L$): 80 mm

• Drill Hole Diameter ($d_0$): 20 mm (in concrete) / 20 mm (in hollow masonry, when combined with an SH 20x85 mesh sleeve)

• Thread Engagement Depth ($x$): 12 - 35 mm

• Material/Grade: Zinc-plated carbon steel ($\ge$ 5 µm), Steel Grade 5.8.

Key Benefits & Operating Principle

• Flush-Surface Anchoring: Unlike permanent threaded studs that leave a dangerous protrusion, this female sleeve sits completely flush with the base material. It allows standard M12 hexagon bolts or machine screws to be inserted, tightened, and fully removed later without leaving obstructing hardware behind.

• Dual Substrate Versatility:

  • In solid concrete, it is embedded directly into the resin-filled hole.

  • In perforated or hollow brick, it is paired inside a plastic mesh sleeve (such as MIT-SH-K2 20x85) to lock into masonry cavities.

• High-Bite Outer Ribbing: Designed with aggressive external annular ring-grooves that mechanically interlock with the curing chemical mortar, maximizing both pull-out resistance and torque capacity.

Application:

Universally specified alongside Mungo MIT injection resins for structural anchoring requiring periodic disassembly or machine relocation. Perfect for heavy industrial machinery mountings, warehouse storage systems, heavy steel brackets, temporary safety barriers, elevator components, and architectural ironwork.
