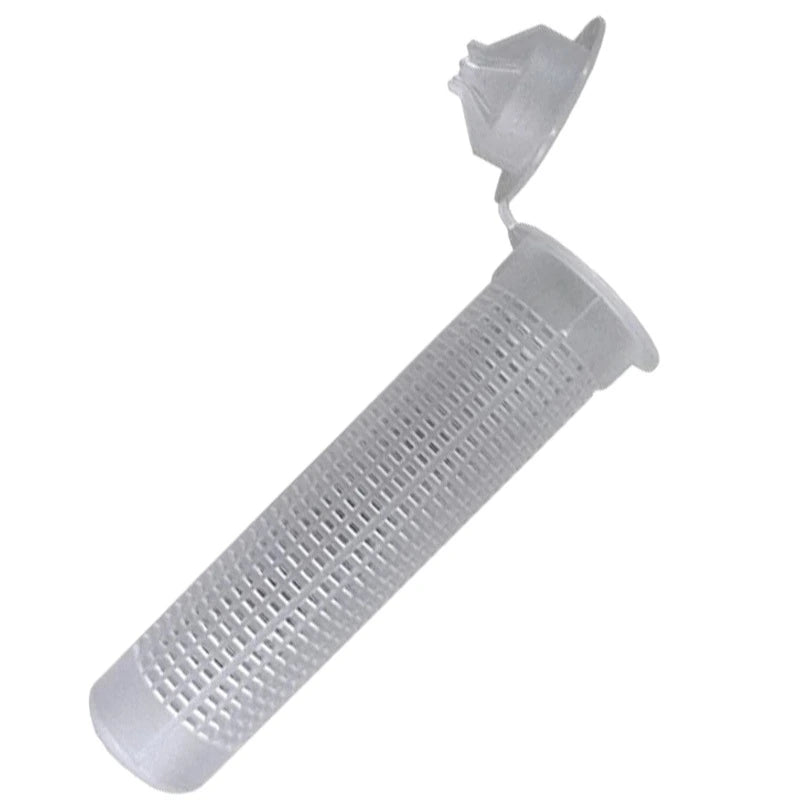

Mungo 1710146 (MIT-SH-K2 Series)

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710146 (MIT-SH-K2 Series)

• Type: Premium Nylon Perforated Sleeve with K2 Centering Cap for Chemical Anchoring

• Quantity: 1 piece (Sold individually)

Technical Specifications

• Sleeve Dimensions (Diameter x Length): 16 x 85 mm

• Compatible Threaded Studs: Engineered to accept M10 and M12 threaded rods.

• Drill Hole Diameter ($d_0$): 16 mm

• Minimum Drilling Depth ($h_0$): 90 mm

• Material: High-performance, chemically resistant Polyamide (Premium Nylon).

Key Benefits & Advanced Features

• Innovative K2 Twin-Cap: Features the patented dual-diameter flip-cap that centers either M10 or M12 rods flawlessly, creating a tight coaxial seal that prevents resin from escaping during insertion.

• Optimized 85 mm Length: Perfect for applications in standard hollow bricks, perforated clay blocks, or thin partition walls where drilling depth is physically restricted.

• Resource-Efficient Perforation: The mesh grid holds the mortar securely inside until the volumetric displacement of the inserted steel rod forces it out into the brick's radial cavities, ensuring an optimal mechanical undercut with minimal waste.

Application:

Specifically designed for mid-to-heavy chemical injection anchoring in hollow clay masonry, perforated blocks, tuff stone, and aerated concrete. Universally specified for secure mounting of air conditioning outdoor units, water heaters (boilers), heavy TV wall mounts, gate hinges, sunshades, and bathroom sanitary hardware.
