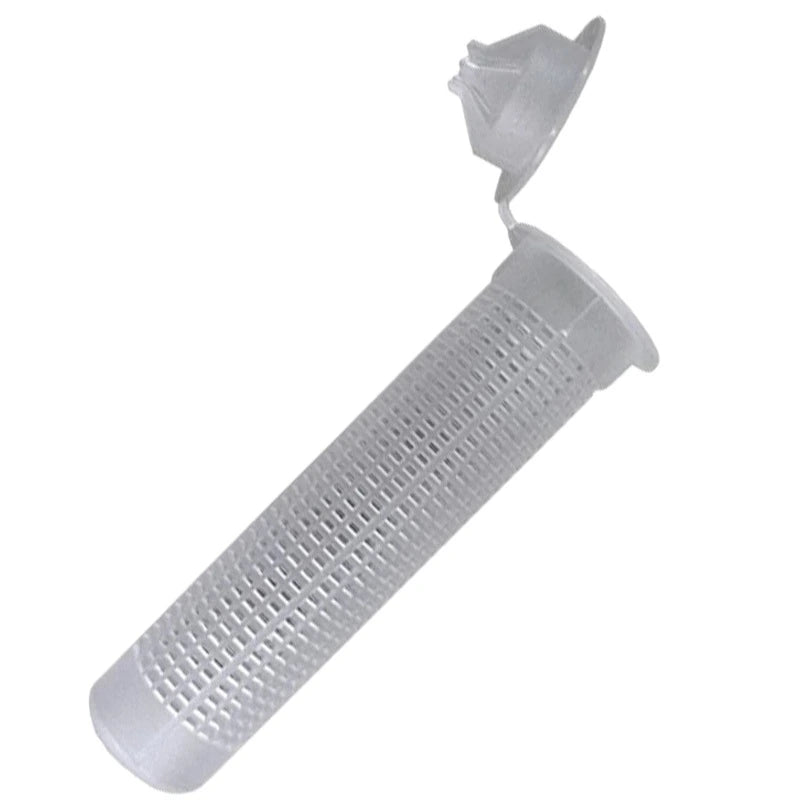

Mungo 1710147 (MIT-SH-K2 Series)

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710147 (MIT-SH-K2 Series)

• Type: Premium Wide Nylon Perforated Sleeve with K2 Centering Cap for Chemical Anchoring

• Quantity per pack: 10 pieces

Technical Specifications

• Sleeve Dimensions (Diameter x Length): 20 x 85 mm

• Compatible Threaded Studs: Engineered to accept heavy M12 and M14 threaded rods.

• Drill Hole Diameter ($d_0$): 20 mm

• Minimum Drilling Depth ($h_0$): 90 mm

• Material: High-performance, chemically resistant Polyamide (Premium Nylon).

Key Benefits & Advanced Features

• Increased Diameter for High Shear Loads: The wide 20 mm sleeve allows for larger M12 and M14 studs to be anchored into hollow bases, offering superior resistance against bending and shear stress.

• Compact 85 mm Length: Perfect for applications in standard hollow bricks or thin partition walls where drilling depth is physically restricted, but high structural rigidity is essential.

• Innovative K2 Twin-Cap: The dual-diameter flip-cap layout centers either M12 or M14 rods seamlessly, forming a tight coaxial seal that prevents resin from dripping or escaping during insertion.

Application:

Specifically designed for heavy-duty chemical injection anchoring in hollow clay masonry, perforated blocks, tuff stone, and aerated concrete. Ideal for secure mounting of large air conditioning outdoor units, heavy canopy awnings, structural steel brackets, balustrades, and industrial wall-mounted hardware.
