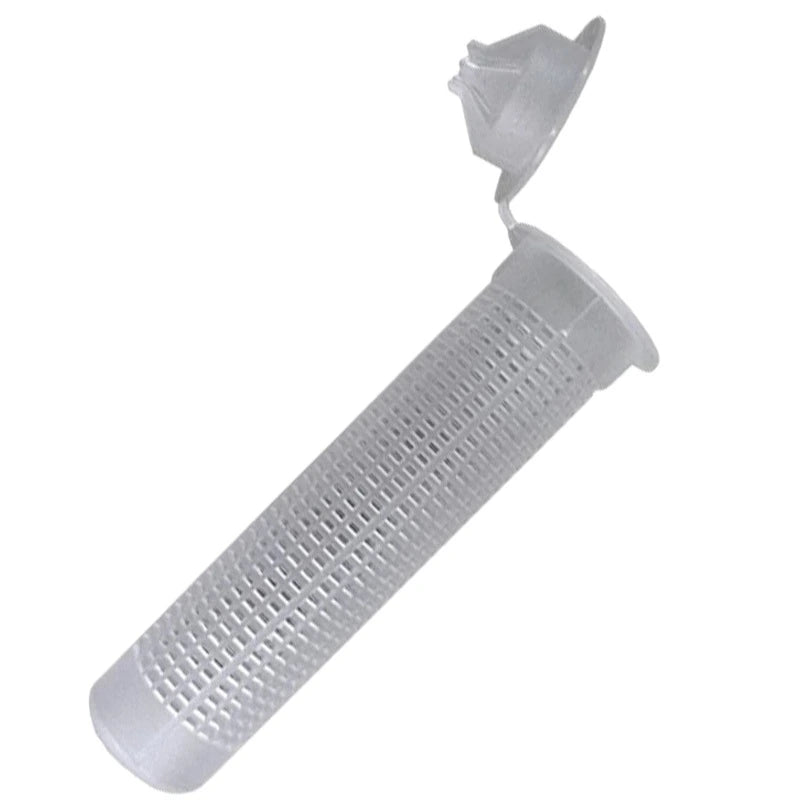

Mungo 1710150 (MIT-SH-K2 Series)

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710150 (MIT-SH-K2 Series)

• Type: Premium Nylon Perforated Sleeve with K2 Centering Cap for Chemical Anchoring

• Quantity per pack: 10 pieces

Technical Specifications

• Sleeve Dimensions (Diameter x Length): 16 x 130 mm

• Compatible Threaded Studs: Engineered to accept M10 and M12 threaded rods.

• Drill Hole Diameter ($d_0$): 16 mm

• Minimum Drilling Depth ($h_0$): 135 mm

• Material: High-performance, chemically resistant Polyamide (Premium Nylon).

Key Benefits & Advanced Features (K2 Technology)

• Innovative K2 Twin-Cap: Features an advanced dual-diameter centering cap that perfectly matches either M10 or M12 rods. It ensures absolute coaxial alignment of the stud and acts as a precise seal to eliminate resin back-flow during installation.

• Engineered Mesh Geometry: The perforation matrix is calibrated to hold the injection mortar inside until the volumetric displacement of the inserted steel rod forces it out into the hollow chambers, creating optimal mechanical undercuts.

• Extended Multi-Chamber Bridging (130 mm): The 130 mm depth allows the anchor sleeve to cross multiple internal webs of perforated masonry, maximizing shear and tensile load transfer.

• Application: Ideal for heavy-duty chemical anchoring in hollow brick, perforated clay blocks, aerated concrete, and tuff masonry. Commonly specified for mounting AC outdoor units, awnings, heavy sunshades, industrial brackets, and safety railings.
