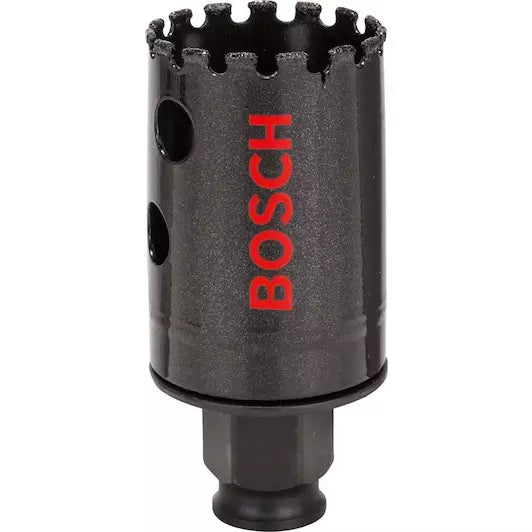

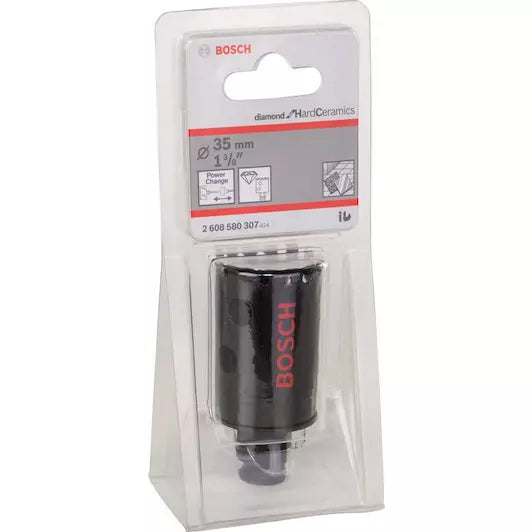

Bosch 2608580307

Professional Summary

• Manufacturer: Bosch (Germany)

• Article / Part Number: 2608580307

• Tool Type: Diamond Dry Core Cutter (Dry Diamond Core Bit)

• Performance Class: Heavy-duty diamond segment technology optimized for dry masonry and infrastructure installations.

Dimensions & Specifications

• Diameter: 102 mm (industry-standard size for drilling clean passageways for ventilation ducts, 100mm sewage/drainage pipes, and extractor fan conduits).

• Working Length: 60 mm (effective drilling depth).

• Segment Count: 4 premium diamond segments attached via highly stable, heat-resistant laser welding.

• Mount / Thread Connection: M16 internal thread (requires a standard M16 adapter shank, such as SDS-plus or hex, and a centering pilot drill bit).

Key Features & Operating Guidelines

• Dry Drilling Optimized: No water cooling required. The advanced diamond matrix and laser joints are structurally built to handle massive friction and high thermal loads during dry operation.

• Rotary Action Only (No Hammer): Must be operated strictly in non-impact/rotary mode. Running this large core bit on a hammer setting will instantly shatter or tear off the premium diamond segments.

• Efficient Core Removal: Large core body slots allow for fast dust extraction and keep operational friction to a minimum.

Application Material Range: Perfect for cutting precise, wide round holes in sand-lime brick, solid clay brick, aerated concrete (breeze blocks), masonry walls, and soft limestone.
