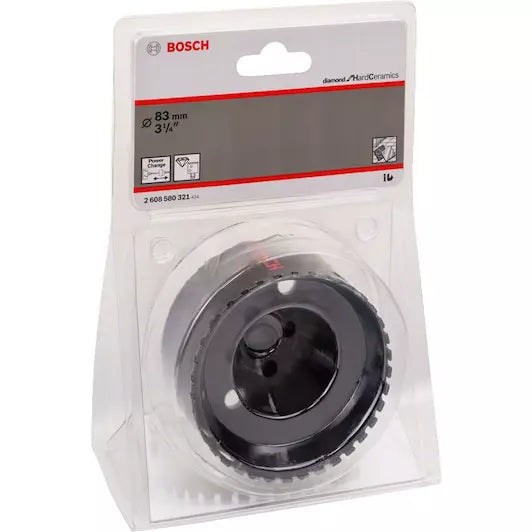

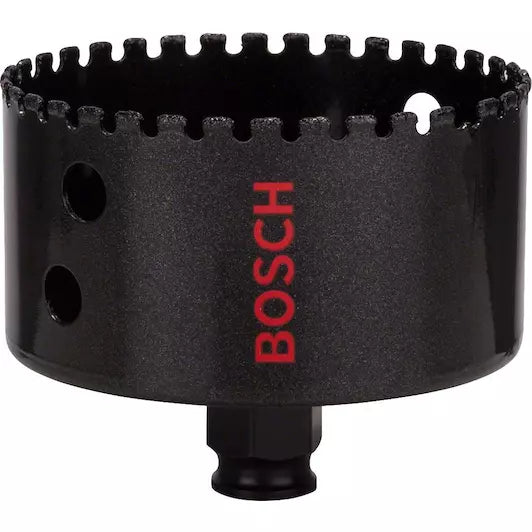

Bosch 2608580321

Professional Summary

• Manufacturer: Bosch (Germany)

• Article / Part Number: 2608580321

• Tool Type: Diamond Dry Core Cutter (Dry Diamond Core Bit)

• Performance Class: Engineered with high-grade diamond grit composition for masonry and building blocks.

Dimensions & Specifications

• Diameter: 83 mm (specifically sized for electrical backbox/junction box installation, allowing sufficient clearance for mortar fixing).

• Working Length: 60 mm (effective drilling depth).

• Segment Count: 4 premium diamond segments attached via advanced laser-welding technology.

• Mount / Thread Connection: M16 internal thread (requires a separate M16 adapter, such as SDS-plus or hex shank, along with a pilot centering drill bit).

Key Features & Operating Guidelines

• Dry Drilling Optimized: No water cooling required. The matrix and laser-welded segments are structurally stabilized to endure high thermal stress during dry operations.

• Rotary Action Only (No Hammer): Must be operated STRICTLY in non-impact/rotary mode. Engaging the hammer/percussion setting on your drill will shatter the diamond matrix and ruin the tool.

• Clean & Fast Cuts: Optimized segment spacing ensures rapid dust removal and minimizes friction during deep cuts.

Application Material Range: Highly effective for cutting clean, round holes in solid clay brick, sand-lime brick, aerated concrete (breeze blocks), limestone, and non-reinforced masonry walls.
