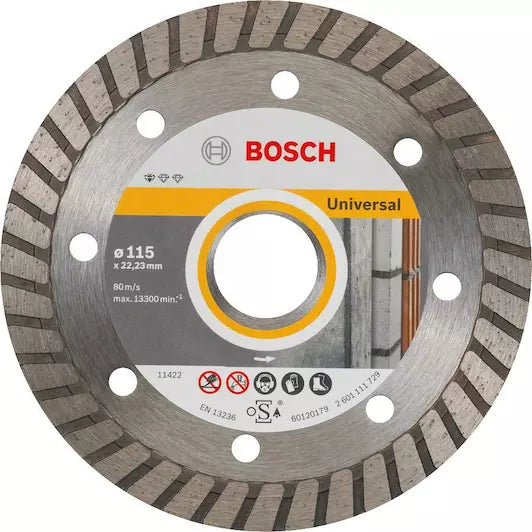

Bosch 2608602393 Standard for Universal Turbo

Professional Summary

• Manufacturer: Bosch (Germany)

• Article / Part Number: 2608602393

• Product Line: Standard for Universal Turbo

• Type: Diamond Cutting Disc (Turbo edge layout)

Dimensions & Fitment Specs

• Outer Diameter: 115 mm (compact profile ideal for standard small 115 mm angle grinders).

• Bore / Inside Diameter: 22.23 mm (standard bore sizing for global power tools and grinders).

• Cutting Width (Thickness): 2.0 mm (thin core blade that ensures smooth, low-resistance cutting with minimal material wastage).

• Segment Height: 10 mm (high diamond matrix concentration providing an extended service life).

Key Features & Engineering

• Turbo Rim Design: The continuous corrugated Turbo segment edge delivers a highly efficient clean-cut finish with reduced risk of material chipping, while simultaneously increasing structural cutting speed.

• Universal Application Matrix: Engineered with a specialized metal bond embedded with industrial diamonds to successfully tackle an array of common building materials.

• Cooling & Performance: Built with core ventilation holes near the center to optimize heat dissipation, maintain blade flatness under thermal load, and suppress vibration during dry cutting.

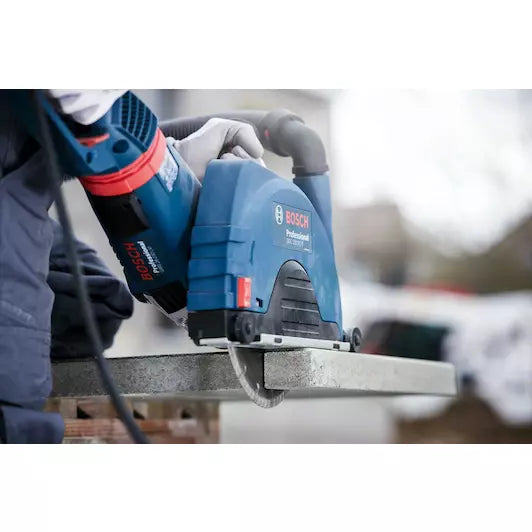

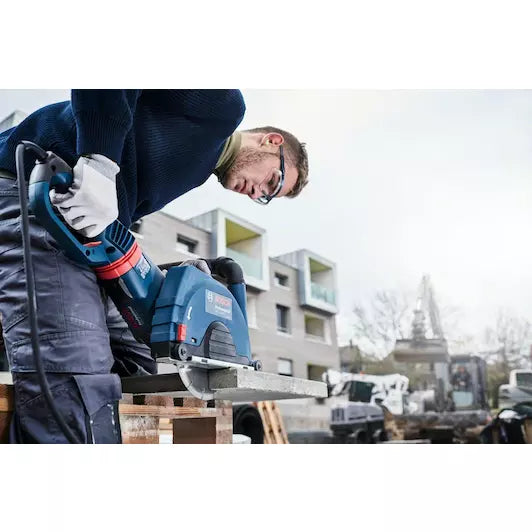

Application Material Range: Universal construction site application. Well-suited for cutting concrete, brick, solid masonry, limestone, roofing tiles, cement-bonded fiberboards, and natural stone.
