KNIPEX Coax Cable Stripper (KN-1660100SB)

KNIPEX Coax Cable Stripper (KN-1660100SB)

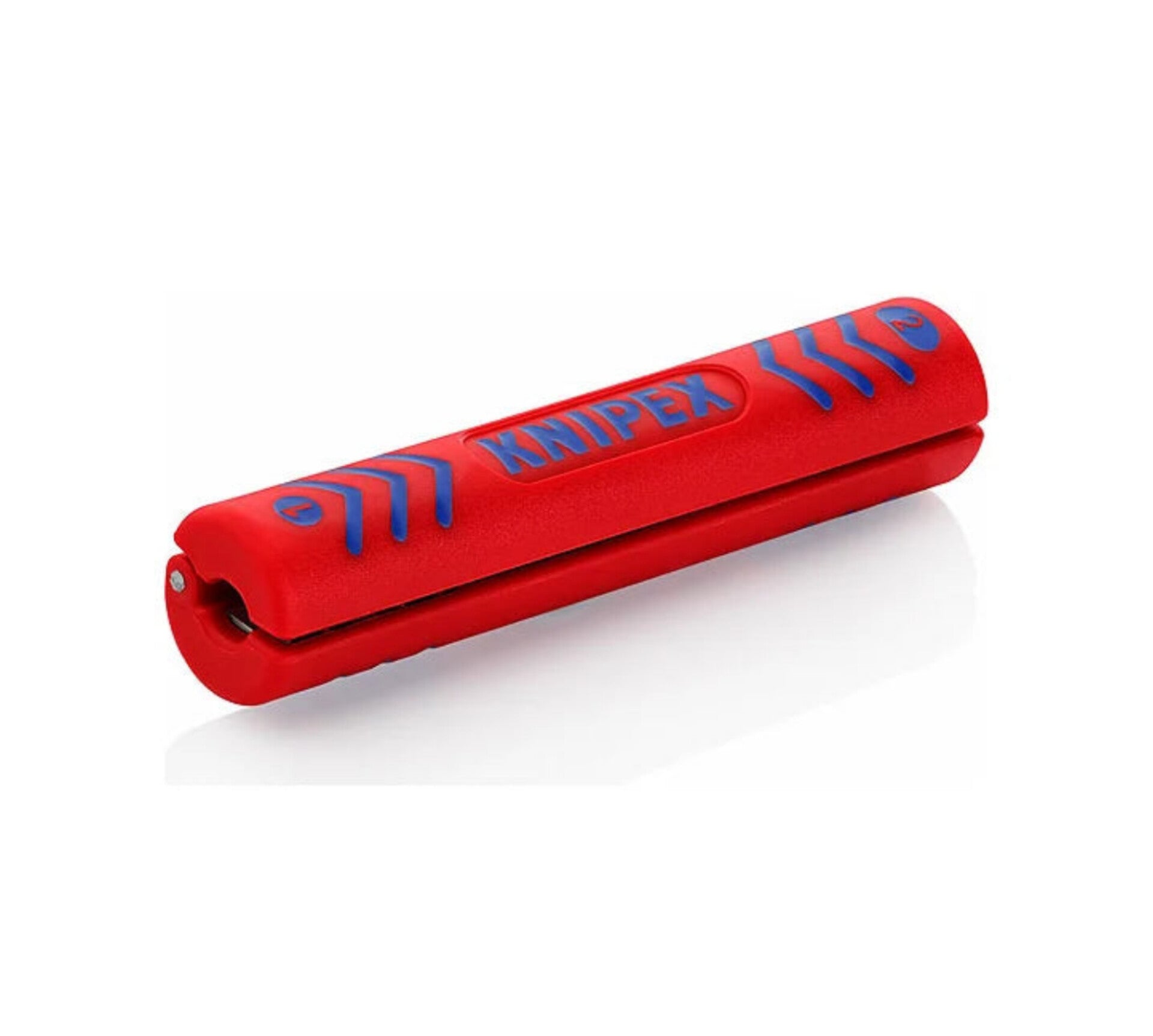

The KNIPEX KN-1660100SB features a housing consisting of two halves with an opening spring and a locking mechanism. It is designed for removing insulation from all commonly used coaxial cables with diameters from 4.8 to 7.5 mm. The tool also strips flexible PVC insulation (3 x 0.75 mm2). It includes a length scale ranging from 5 to 20 mm.

Technical Specifications:

• Type: Mechanical (manual)

• Purpose: Stripping round and coaxial cables

• For Coaxial Cables: Yes

• Knife (Fixed): No

• Replaceable Blades: No

• Cutting Depth Adjustment: No

• Diameter Adjustment: No

• Min. Cable Diameter: 4.8 mm

• Max. Cable Diameter: 7.5 mm

• Max. Wire Cross-section: 0.75 mm2

• VDE Insulated: No

• End Gripping/Stripping: Yes

• Net Weight: 0.022 kg

• Handle Covers: Plastic

Advantages:

• Integrated Scale: Features a length scale with a range of 5 to 20 mm for precise stripping.

• Versatility: Works with coax cables (4.8 - 7.5 mm) and strips flexible PVC (3 x 0.75 mm2).

• Ergonomic Housing: Two-part body with an opening spring and secure locking mechanism.

• Ultra-Portable: Extremely low weight and small dimensions simplify transport and storage.
