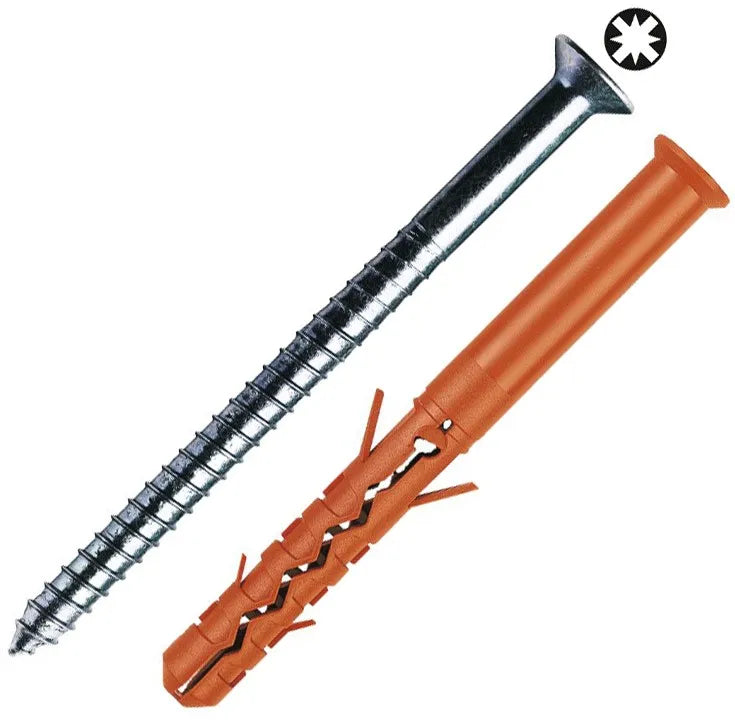

Mungo 1121008 10*80

Product Summary

• Manufacturer: Mungo Befestigungstechnik AG

• Article / Part Number: 1121008

• Series: MBR-S (Facade anchor)

• Base Material: Concrete, solid brick, sand-lime solid brick.

• Included: Pre-assembled screw.

Technical Dimensions

• Anchor Diameter : 10 mm

• Total Length : 80 mm

• Required Drill Diameter: 10 mm

• Min. Anchorage Depth: 70 mm

Key Features & Engineering

• Optimized Expansion: Engineered for high performance in solid base materials. The 80 mm length provides deeper anchorage, ensuring superior pull-out resistance compared to shorter variants.

• Pre-assembled Efficiency: Supplied with the screw pre-fitted, which optimizes workflow and ensures the correct pairing of anchor and screw for each application.

• High-Quality Nylon: Manufactured from premium, weather-resistant polyamide, preventing embrittlement and maintaining structural load-bearing capacity over time.

• Stress Distribution: The anchor design allows for an even distribution of expansion forces along the entire length of the borehole, preventing spalling in solid substrates.

Application Range:

Professional construction. Ideally suited for mounting facade substructures, heavy-duty timber constructions, steel beams, and various industrial fixtures in concrete or solid masonry walls.
