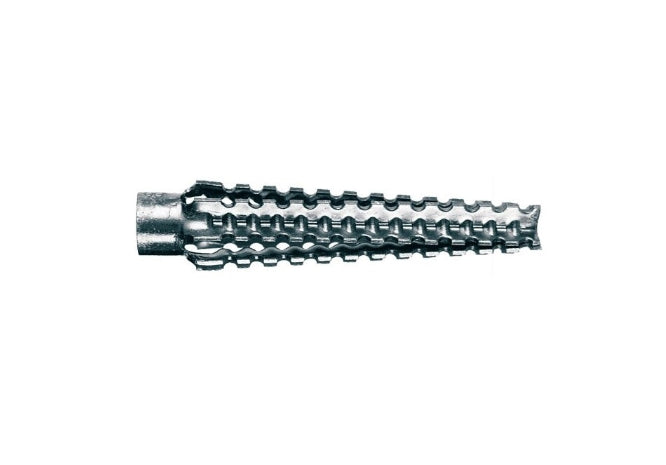

Mungo 1127076 8*60

Product Summary

• Manufacturer: Mungo Befestigungstechnik AG

• Article / Part Number: 1127076

• Series: MEF (Metal anchor for aerated/lightweight concrete)

• Base Material: Aerated concrete (Gas concrete), lightweight concrete, and soft building materials.

• Design: High-profile external spiral thread for secure anchoring in porous substrates.

Technical Dimensions

• Anchor Diameter : 8 mm

• Total Length : 60 mm

• Required Drill Diameter: 8 mm

• Min. Anchorage Depth: 60 mm

Key Features & Engineering

• Deep Anchoring for High Loads: The 60 mm length provides significant surface contact in aerated concrete, making it the ideal choice for applications requiring higher pull-out resistance than shorter variants.

• Aggressive Spiral Lock: Features sharp, aggressive external threads that cut deep into the soft material, distributing the load over a larger area to prevent structural damage to the substrate.

• Durable Metallic Construction: Made of robust, corrosion-protected steel. Unlike plastic anchors, it maintains its structural integrity and tension even under continuous load in soft materials.

• Universal Screw Compatibility: The internal geometry is precision-engineered to accept a wide range of screw types (wood, chipboard, or metric), ensuring versatility for various installation scenarios.

Application Range:

Professional construction. Ideally suited for mounting heavy-duty shelving, larger cabinets, radiator brackets, and structural elements onto aerated concrete or porous masonry walls.
