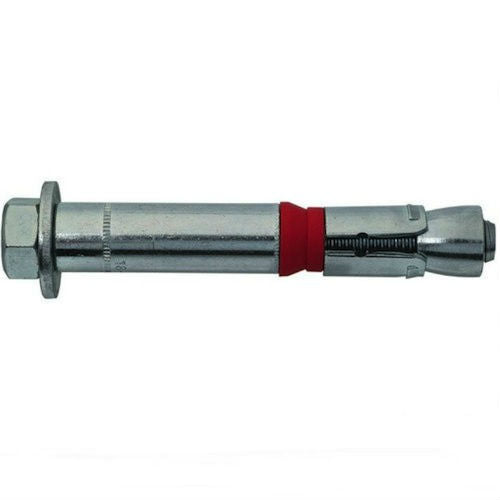

Mungo 1221802 18*120

Product Summary

• Manufacturer: Mungo Befestigungstechnik AG

• Article / Part Number: 1221802

• Series: HL-S / SZ-S (High-performance through-bolt)

• Material: Zinc-plated steel

• Base Material: Cracked and non-cracked concrete (C20/25 to C50/60).

Technical Dimensions

• Anchor Diameter : 18 mm

• Total Length : 120 mm

• Max. Fixture Thickness : 20 mm

• Required Drill Diameter: 18 mm

Key Features & Engineering

• Maximum Performance: Designed for extremely high tension and shear loads in structural concrete.

• Mechanism: Torque-controlled expansion. When the nut is tightened to the specified torque, the expansion clip forces against the concrete, creating a high-strength mechanical anchor.

• Certification: ETA (European Technical Assessment) approved for safety-critical applications.

• Anti-Rotation: Prevents the anchor from turning in the hole during the tightening process, ensuring a secure fit.

Application Range:

Industrial construction and infrastructure. Ideal for anchoring heavy structural steel beams, large machinery bases, crane rails, and heavy-duty industrial equipment where maximum security is required.
