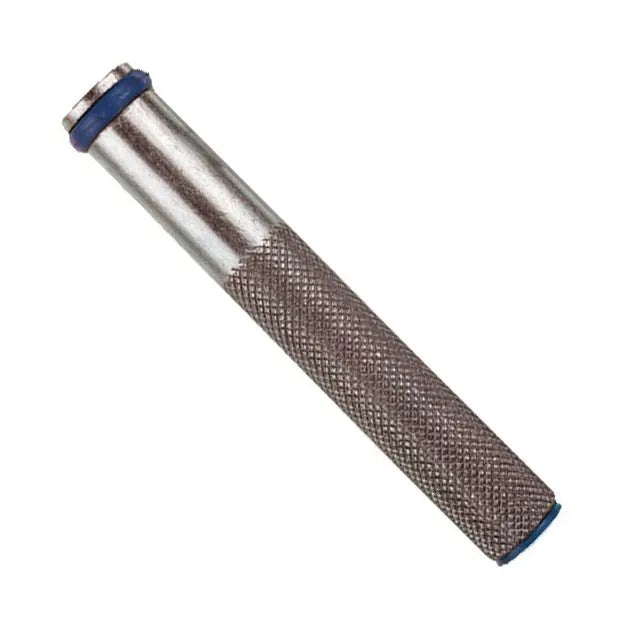

Mungo 1710062 (MIT-IGH Series)

Professional Summary

• Manufacturer: Mungo (Switzerland)

• Model/Article: 1710062 (MIT-IGH Series)

• Type: Internally Threaded Sleeve for Chemical Anchoring (Female Sleeve)

• Quantity: 1 piece (Sold individually)

Technical Specifications

• Internal Metric Thread Size: M10

• Sleeve Outer Diameter ($d$): 16 mm

• Total Sleeve Length ($L$): 80 mm

• Drill Hole Diameter ($d_0$): 18 mm (in concrete) / 18 mm (in hollow masonry, when paired with an SH 16x85 mesh sleeve)

• Thread Engagement Depth ($x$): 10 - 30 mm

• Material/Grade: Zinc-plated carbon steel ($\ge$ 5 µm), Steel Grade 5.8.

Key Benefits & Operating Principle

• Obstruction-Free Flush Finish: Once installed with injection mortar, the sleeve sits completely level with the base material. It allows standard M10 bolts or machine screws to be threaded in tightly and fully removed later, making it ideal for temporary fixtures or modular layouts.

• Aggressive Threaded Ribbing: Designed with heavy external annular grooves that mechanically lock into the curing chemical resin, maximizing resistance against high pulling forces and rotational torque.

• Substrate Adaptability:

  • In solid concrete, it is anchored directly into the resin-filled cavity.

  • In perforated masonry or hollow brick, it is slipped inside a plastic mesh sleeve (such as MIT-SH-K2 16x85) to form a secure internal undercut.

Application:

Specified alongside Mungo MIT injection resins for structural and non-structural anchoring where flush removal is required. Perfect for mid-to-heavy industrial machinery anchoring, ventilation system supports, protective railings, stadium seating installation, heavy brackets, and commercial balustrades.
